$13,400
Condition
Used
Year
2015
Make
Kubota
Model
M5-091
Fuel Type
Diesel
Transmission
Power Shuttle
Description

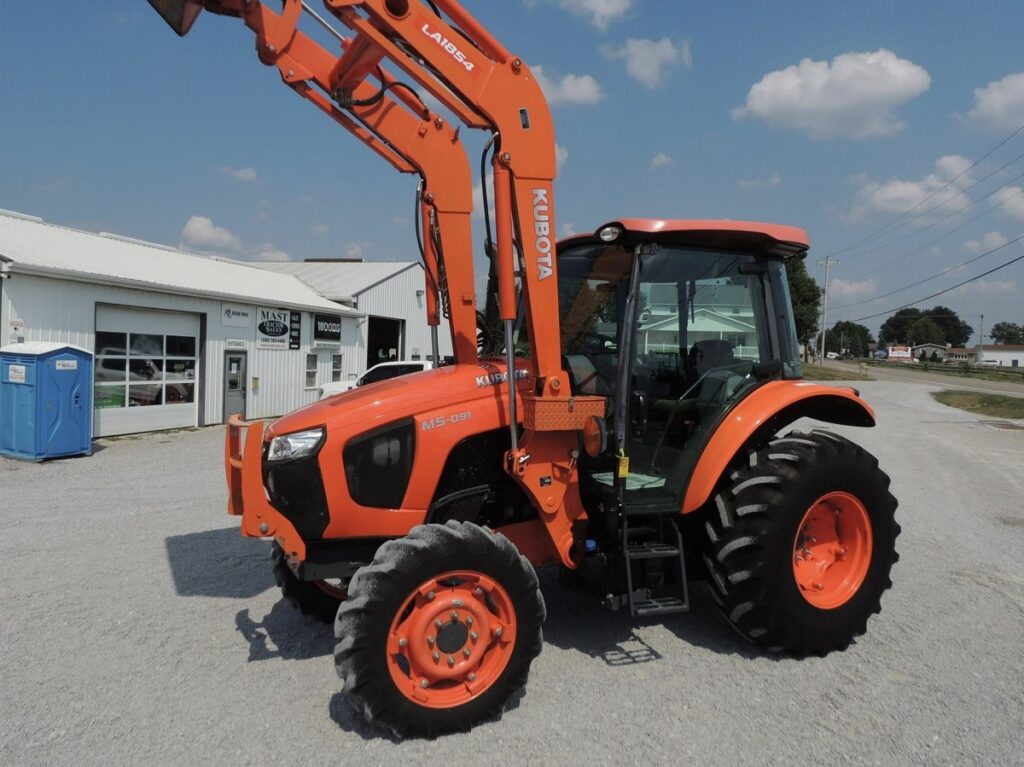

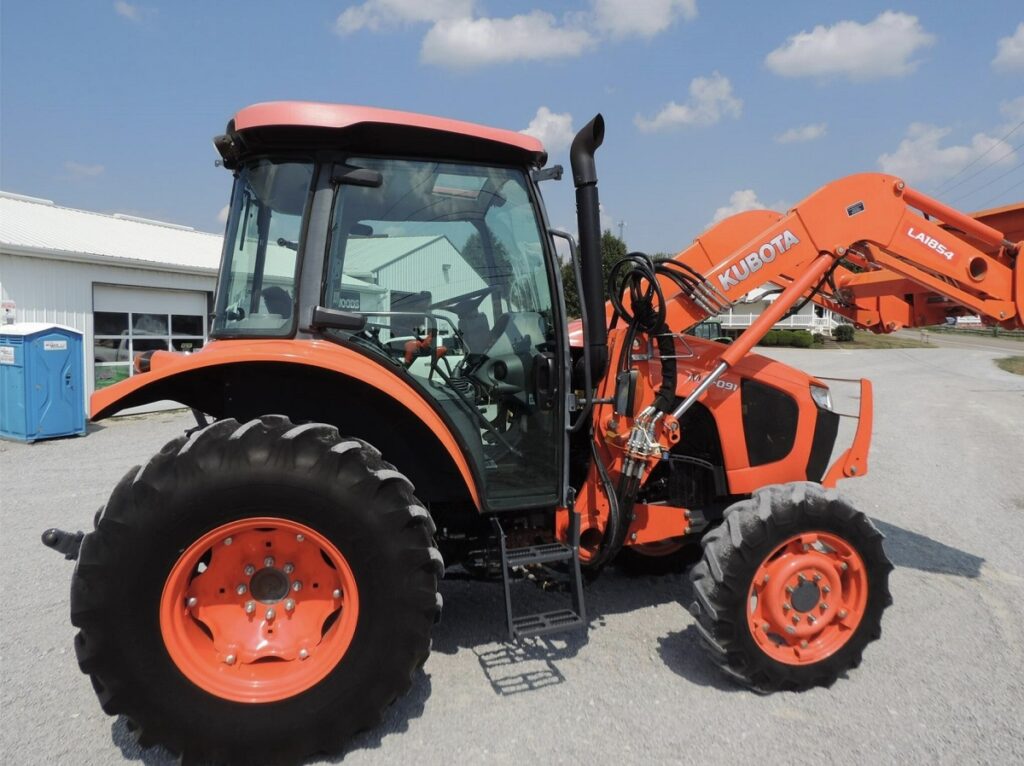

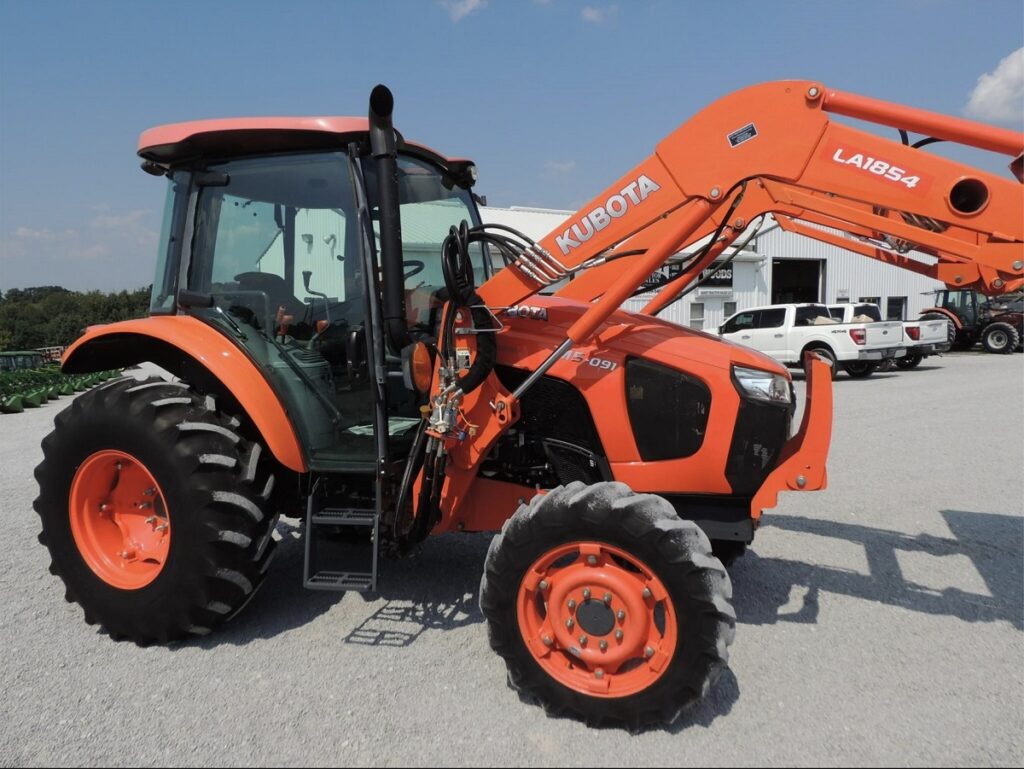

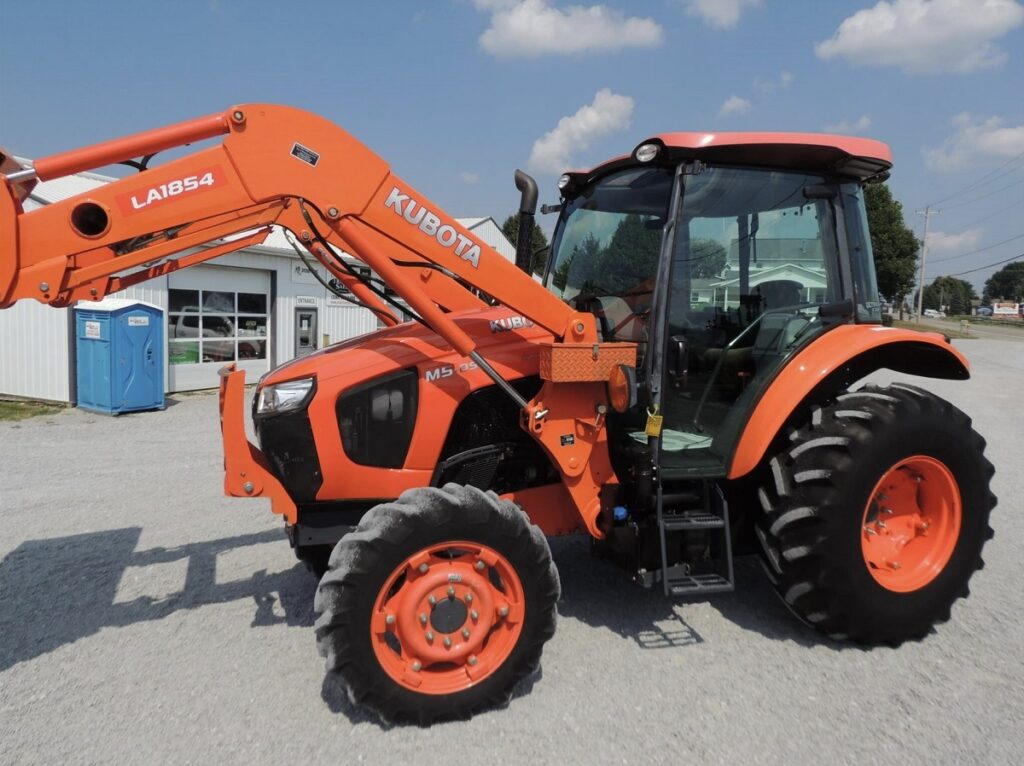

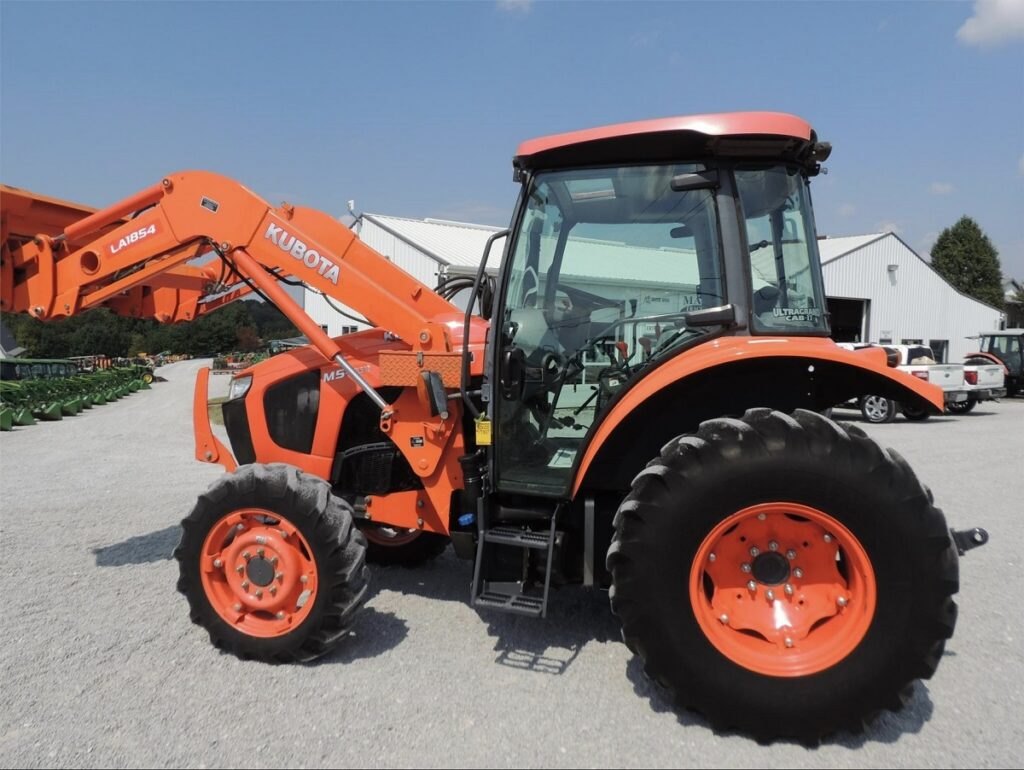

2015 Kubota M5-091 Utility Tractor
Serial #: 50496 | 1,110 Hours | 92 HP | Kubota V3800-TI-CRS Engine | 4 Cylinders | 8F/8R Power Shuttle Transmission | Fuel Type: Diesel | Drive Type: MFWD (4WD) | ROPS Type: Enclosed Cab
—————————-
This 2015 Kubota M5-091 Utility Tractor is powered by a Kubota V3800-TI-CRS 3.8L 4-cylinder turbocharged diesel engine with glow plugs, delivering 92 horsepower (76 PTO HP) through an 8F/8R power shuttle transmission with a power reverser. The tractor is equipped with a Kubota LA1854 self-leveling front loader with a 7’ quick-attach bucket and skid steer-style carrier, a factory joystick, two rear hydraulic outlets, a Category 2 3-point hitch with deluxe telescopic arms, a top link, stabilizer bars, and a 540 RPM rear PTO. Finished in Kubota Orange with low-profile 9.5-22 front tires (25% tread) and 16.9-24 rear tires (65% tread), it features a climate-controlled enclosed cab with heat, air conditioning, a suspension seat, a tilt wheel, and a foldable ROPS. Additional amenities include a grill guard, a toolbox, front and rear work lights, two entry doors, a differential lock, power steering, a hand and…
2015 Kubota M5-091 Utility Tractor
Serial #: 50496 | 1,110 Hours | 92 HP | Kubota V3800-TI-CRS Engine | 4 Cylinders | 8F/8R Power Shuttle Transmission | Fuel Type: Diesel | Drive Type: MFWD (4WD) | ROPS Type: Enclosed Cab
—————————-
This 2015 Kubota M5-091 Utility Tractor is powered by a Kubota V3800-TI-CRS 3.8L 4-cylinder turbocharged diesel engine with glow plugs, delivering 92 horsepower (76 PTO HP) through an 8F/8R power shuttle transmission with a power reverser. The tractor is equipped with a Kubota LA1854 self-leveling front loader with a 7’ quick-attach bucket and skid steer-style carrier, a factory joystick, two rear hydraulic outlets, a Category 2 3-point hitch with deluxe telescopic arms, a top link, stabilizer bars, and a 540 RPM rear PTO. Finished in Kubota Orange with low-profile 9.5-22 front tires (25% tread) and 16.9-24 rear tires (65% tread), it features a climate-controlled enclosed cab with heat, air conditioning, a suspension seat, a tilt wheel, and a foldable ROPS. Additional amenities include a grill guard, a toolbox, front and rear work lights, two entry doors, a differential lock, power steering, a hand and foot throttle, and a cup holder. This M5-091 is now offered with a clean title.
The tractor is finished in Kubota Orange, featuring a durable steel chassis and composite hood, complemented by a heavy-duty cast-iron front axle. The exterior includes a grill guard and front/rear work lights on the cab, and was professionally cleaned in 2024, showcasing its well-maintained condition.
The low-profile 9.5-22 front and 16.9-24 rear agricultural tires (not loaded) provide traction for field work, with 25% tread remaining on the front and 65% on the rear. The hydraulic wet disc brakes ensure reliable stopping power, and the differential lock enhances traction. The 8F/8R power shuttle transmission with a synchronized gear system and power reverser allows smooth, clutchless forward-to-reverse shifts, ideal for loader tasks, with a top speed of approximately 22 mph (35 km/h).
The enclosed cab features a suspension seat, air conditioning, heat, a tilt steering wheel, and a digital display for RPM, fuel level, and engine temperature. Appointments include a factory joystick for the self-leveling LA1854 loader, a hand and foot throttle, a cup holder, a toolbox, and two entry doors for easy access. The two rear hydraulic outlets and 3-point hitch with telescopic arms and stabilizer bars support versatile implement operation, with the loader offering precise material handling via its self-leveling feature and 7’ quick-attach bucket.
The instrumentation includes a clear digital display, and the hour meter shows 1,110 hours.
The Kubota V3800-TI-CRS 3.8L (230 cu. in.) 4-cylinder turbocharged diesel engine with common rail system (CRS) produces 92 horsepower at 2400 RPM, delivering efficient power with low vibration. The hydraulic system provides a total flow of 18.1 gpm (11.8 gpm implement, 6.3 gpm steering) at 2840 psi, supporting the loader, rear hydraulics, and 3-point hitch with a lift capacity of 3307 lb at 24″ behind the lift point.
Technical Specifications:
Engine: Kubota V3800-TI-CRS, 3.8L (3769 cc), 4-cylinder, turbocharged diesel, direct injection
Horsepower: 92 HP (gross), 76 HP (PTO) at 2400 RPM
Fuel Tank Capacity: 27.7 gal (105 L)
Transmission: 8F/8R power shuttle, synchronized gears, power reverser
PTO: Rear, independent, 540 RPM
Hydraulic System: Open center, 18.1 gpm (68.5 L/min) total, 11.8 gpm (44.7 L/min) implement, 2840 psi
Lift Capacity: 3307 lb (1500 kg) at 24″ behind lift point
Loader (LA1854): Lift capacity at full height (at pin) 4012 lb (1820 kg), breakout force 4531 lb (2055 kg), lift height to pin 122.1 in (3100 mm), 7’ quick-attach bucket, skid steer carrier
Dimensions: Overall length (with 3-point hitch) 142.7 in (3625 mm), width 71.1 in (1805 mm), height to top of cab 99.2 in (2520 mm), wheelbase 80.7 in (2050 mm), ground clearance 16.1 in (410 mm)
Weight (with cab and loader): Approx. 6063 lb (2750 kg)
Tires: Front 9.5-22 (25% tread), Rear 16.9-24 (65% tread), agricultural
Additional Features: Two rear hydraulic outlets, Category 2 3-point hitch with telescopic arms, top link, stabilizer bars, self-leveling loader, grill guard, toolbox, front/rear work lights, suspension seat, tilt wheel, hand/foot throttle, cup holder, two cab doors, power steering, differential lock
This Kubota M5-091 is in excellent condition with low hours, featuring a climate-controlled cab, a versatile self-leveling LA1854 loader, and robust hydraulic capabilities, making it a reliable and powerful utility tractor for farming, landscaping, or property maintenance tasks.
—————————-
