$14,000
Condition
Used
Year
14000
Make
John Deere
Model
5090M
Fuel Type
Diesel
Transmission
Power Shuttle
Description

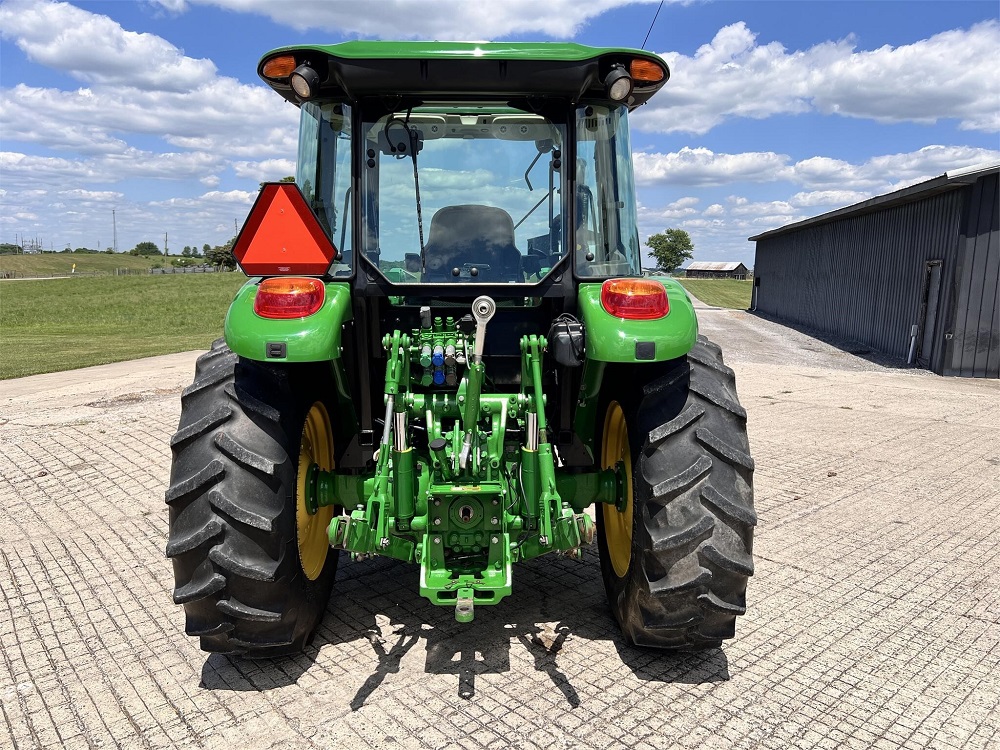

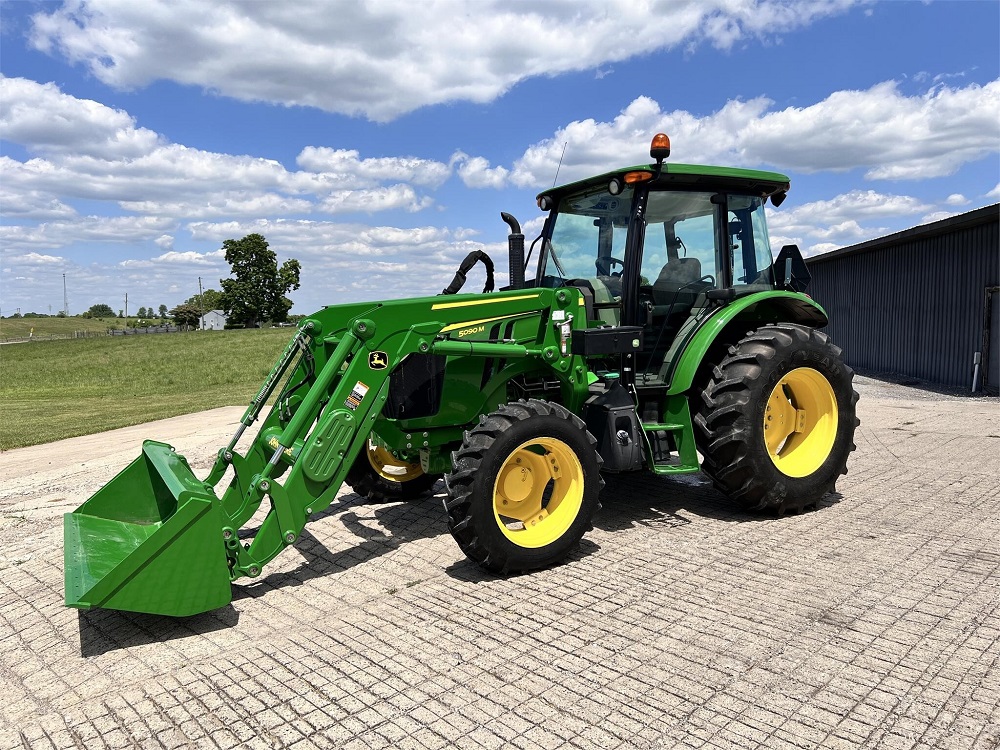

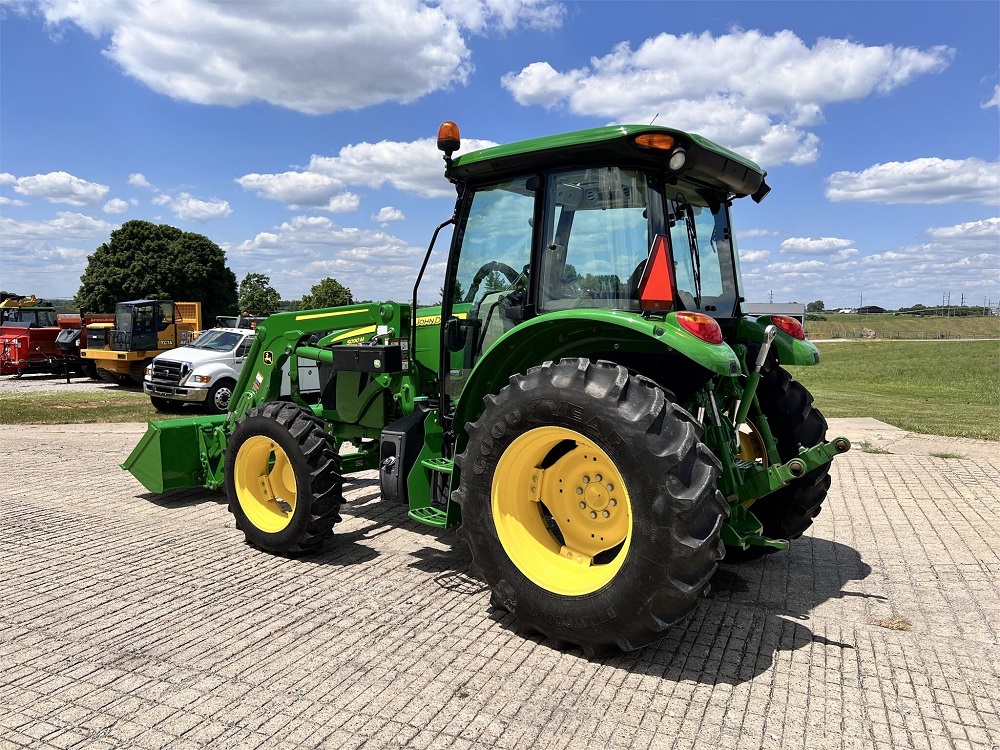

2018 John Deere 5090M Utility Tractor
Serial #: 1LV5090MKHJ400264 | 1,344 Hours | 90 HP | John Deere PowerTech 4045 Engine | 4 Cylinders | 32F/16R PowerReverser Transmission with Hi-Lo | Fuel Type: Diesel | Drive Type: MFWD (4WD) | ROPS Type: Enclosed Cab
—————————-
This 2018 John Deere 5090M Utility Tractor is powered by a John Deere PowerTech 4045 4.5L 4-cylinder turbocharged diesel engine, delivering 90 horsepower (75 PTO HP) through a 32F/16R PowerReverser transmission with Hi-Lo shift and a left-hand reverser for clutchless forward-to-reverse shifting. The tractor is equipped with a John Deere 540M non-self-leveling (NSL) front loader featuring a 74″ quick-attach bucket (400/500 series) with single-point hydraulic disconnect, joystick control, three rear hydraulic selective control valves (SCVs), mid-mount hydraulics, a Category 2 3-point hitch with top link, and a 540E/540 RPM rear PTO. Finished in John Deere Green with 11.2-24 front tires (65% tread) and 16.9-30 rear tires (70% tread, singles), it features an enclosed cab with air conditioning, heat, an AM/FM/Weatherband radio, an air-ride seat, a rear wiper, a visibility roof, corner cab exhaust, a grill guard, a toolbox, and a…
2018 John Deere 5090M Utility Tractor
Serial #: 1LV5090MKHJ400264 | 1,344 Hours | 90 HP | John Deere PowerTech 4045 Engine | 4 Cylinders | 32F/16R PowerReverser Transmission with Hi-Lo | Fuel Type: Diesel | Drive Type: MFWD (4WD) | ROPS Type: Enclosed Cab
—————————-
This 2018 John Deere 5090M Utility Tractor is powered by a John Deere PowerTech 4045 4.5L 4-cylinder turbocharged diesel engine, delivering 90 horsepower (75 PTO HP) through a 32F/16R PowerReverser transmission with Hi-Lo shift and a left-hand reverser for clutchless forward-to-reverse shifting. The tractor is equipped with a John Deere 540M non-self-leveling (NSL) front loader featuring a 74″ quick-attach bucket (400/500 series) with single-point hydraulic disconnect, joystick control, three rear hydraulic selective control valves (SCVs), mid-mount hydraulics, a Category 2 3-point hitch with top link, and a 540E/540 RPM rear PTO. Finished in John Deere Green with 11.2-24 front tires (65% tread) and 16.9-30 rear tires (70% tread, singles), it features an enclosed cab with air conditioning, heat, an AM/FM/Weatherband radio, an air-ride seat, a rear wiper, a visibility roof, corner cab exhaust, a grill guard, a toolbox, and a differential lock. This 5090M is now offered with a clean title in excellent condition.
The tractor is finished in John Deere Green, featuring a durable steel frame and composite hood, complemented by a heavy-duty cast-iron front axle for robust performance. The exterior includes LED work lights, a corner cab exhaust for improved visibility, a grill guard, and a visibility roof for enhanced sightlines, and was professionally cleaned in 2024, showcasing its well-maintained condition.
The 11.2-24 front and 16.9-30 rear single tires provide excellent traction for field and loader work, with 65% and 70% tread remaining, respectively. The hydraulic wet disc brakes and differential lock ensure reliable stopping power and enhanced traction. The 32F/16R PowerReverser transmission with Hi-Lo shift offers 32 forward speeds (16 per range) and 16 reverse speeds, allowing precise gear selection under load with a top speed of approximately 25 mph (40 km/h). The left-hand reverser simplifies operation for loader-intensive tasks.
The enclosed ComfortView cab features an air-ride suspension seat, air conditioning, heat, and an AM/FM/Weatherband radio for operator comfort. Appointments include a joystick for loader control, a digital display for RPM, fuel level, and engine temperature, a rear wiper for clear visibility, a cup holder, a toolbox, and dual cab doors for easy access. The three rear SCVs and mid-mount hydraulics support versatile implement operation, with the 540M NSL loader providing robust material handling. The 3-point hitch, with a lift capacity of 4057 lb at 24″ behind the lift point, includes a top link for secure implement attachment. The 540E/540 PTO offers economy mode for fuel-efficient operation at lower RPMs.
The instrumentation includes a clear digital display, and the hour meter shows 1,344 hours.
The John Deere PowerTech 4045 4.5L (276 cu. in.) 4-cylinder turbocharged diesel engine meets EPA Tier 4 Final emission standards with a diesel oxidation catalyst (DOC) and selective catalytic reduction (SCR), producing 90 horsepower at 2400 RPM. The hydraulic system, with a pressure-and-flow compensated (PFC) pump, delivers 25.2 gpm (17.8 gpm implement, 7.4 gpm steering) at 2900 psi, supporting the loader, rear SCVs, mid-mount hydraulics, and 3-point hitch.
Technical Specifications:
Engine: John Deere PowerTech 4045, 4.5L (4500 cc), 4-cylinder, turbocharged diesel, 106.5 mm bore x 127.0 mm stroke
Horsepower: 90 HP (gross), 75 HP (PTO) at 2400 RPM
Fuel Tank Capacity: 30.7 gal (116 L)
Transmission: 32F/16R PowerReverser with Hi-Lo, hydraulic shuttle, 32 forward and 16 reverse speeds, left-hand reverser
PTO: Rear, independent, 540E/540 RPM
Hydraulic System: PFC, 25.2 gpm (95.4 L/min) total, 17.8 gpm (67.4 L/min) implement, 2900 psi, three rear SCVs, mid-mount hydraulics
Lift Capacity: 4057 lb (1840 kg) at 24″ behind lift point
Loader (540M NSL): Lift capacity at full height (at pin) 3133 lb (1421 kg), breakout force 4687 lb (2126 kg), lift height to pin 126 in (3200 mm), 74″ quick-attach bucket (400/500 series), single-point hydraulic disconnect
Dimensions: Overall length (with 3-point hitch) 153.2 in (3890 mm), width 72.6 in (1844 mm), height to top of cab 100.8 in (2560 mm), wheelbase 85.7 in (2177 mm), ground clearance 17.3 in (440 mm)
Weight (with cab and loader): Approx. 7100 lb (3220 kg)
Tires: Front 11.2-24 (singles, 65% tread), Rear 16.9-30 (singles, 70% tread)
Additional Features: Three rear SCVs, mid-mount hydraulics, Category 2 3-point hitch with top link, air-ride seat, AM/FM/WB radio, rear wiper, visibility roof, corner cab exhaust, grill guard, toolbox, differential lock, power steering, wet disc brakes, joystick loader control, 540E PTO economy mode
This John Deere 5090M is in excellent condition with moderate hours, featuring a premium enclosed cab with radio and rear wiper, a versatile 540M NSL loader with a 74″ bucket, and a robust hydraulic system with three rear SCVs and mid-mount hydraulics, making it a powerful and efficient utility tractor for farming, material handling, or property maintenance tasks.
—————————-
Buy with Confidence: we are so confident in the condition of our equipment that we offer a 10-day inspection policy and a 6-month warranty!
– Clean Title!
– Excellent Condition!
– Backed by our 6-month warranty!
– 10-Day Inspection Policy!
We also offer nationwide shipping at a competitive rate of $0.80 per mile. Our shipping service is handled with the utmost care, ensuring that your equipment arrives safely and in the same excellent condition in which it leaves our lot.
Whether you’re local or across the country, we’re committed to delivering the best equipment-buying experience possible. Reach out today and let us help you find your next equipment!
Contact us today for more information!!
Phone: +1 (936) 463-6272
