$11,600
Condition
Used
Year
2020
Make
John Deere
Model
5075E
Fuel Type
Diesel
Transmission
Hydrostatic
Description

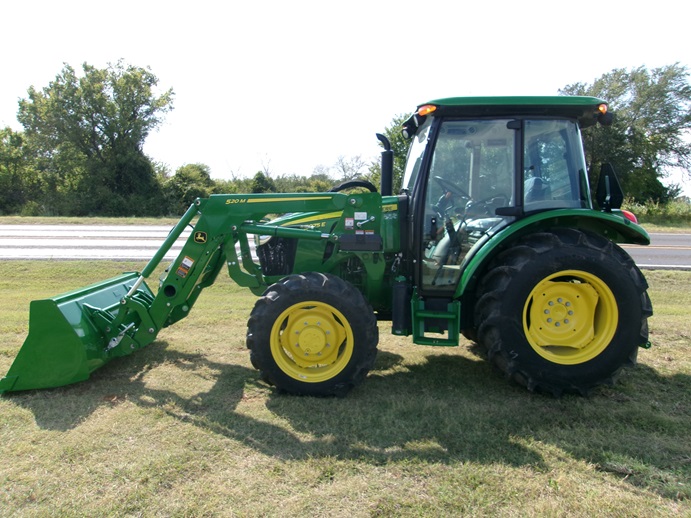

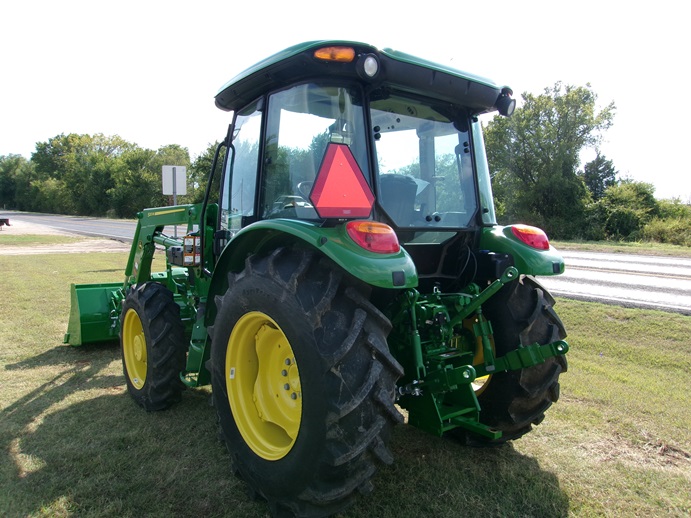

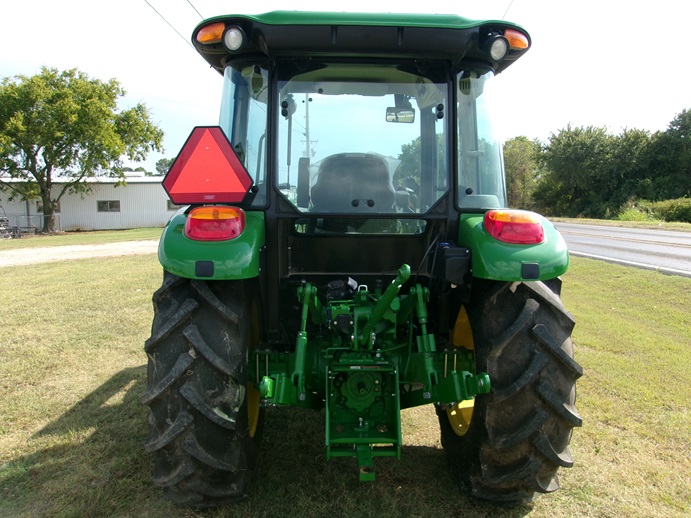

2020 John Deere 5075E Utility Tractor
Serial #: 1PY5075EAKK410286 | 25.8 Hours | 75 HP | John Deere 3029H Engine | 4 Cylinders | 12F/12R PowerReverser Transmission | Fuel Type: Diesel | Drive Type: MFWD (4WD) | ROPS Type: Enclosed Cab
—————————-
This 2020 John Deere 5075E Utility Tractor is powered by a John Deere 3029H 2.9L 4-cylinder turbocharged diesel engine, delivering 75 horsepower (60 PTO HP) through a 12F/12R PowerReverser transmission with a left-hand reverser for clutchless forward-to-reverse shifting. The tractor is equipped with a John Deere 520M front loader featuring a quick-attach bucket and third-function hydraulic remotes, one set of rear factory hydraulic remotes, a Category 2 3-point hitch with telescopic arms, and a 540 RPM rear PTO. Finished in John Deere Green with 16.9-28 rear and 9.5-24 front tires, it features an enclosed cab with cold-blowing air conditioning, heat, and a foldable ROPS. With only 25.8 original hours from a single owner, this 5075E is now offered with a clean title in like-new condition.
The tractor is finished in John Deere Green, featuring a durable steel frame and composite hood, complemented by…
2020 John Deere 5075E Utility Tractor
Serial #: 1PY5075EAKK410286 | 25.8 Hours | 75 HP | John Deere 3029H Engine | 4 Cylinders | 12F/12R PowerReverser Transmission | Fuel Type: Diesel | Drive Type: MFWD (4WD) | ROPS Type: Enclosed Cab
—————————-
This 2020 John Deere 5075E Utility Tractor is powered by a John Deere 3029H 2.9L 4-cylinder turbocharged diesel engine, delivering 75 horsepower (60 PTO HP) through a 12F/12R PowerReverser transmission with a left-hand reverser for clutchless forward-to-reverse shifting. The tractor is equipped with a John Deere 520M front loader featuring a quick-attach bucket and third-function hydraulic remotes, one set of rear factory hydraulic remotes, a Category 2 3-point hitch with telescopic arms, and a 540 RPM rear PTO. Finished in John Deere Green with 16.9-28 rear and 9.5-24 front tires, it features an enclosed cab with cold-blowing air conditioning, heat, and a foldable ROPS. With only 25.8 original hours from a single owner, this 5075E is now offered with a clean title in like-new condition.
The tractor is finished in John Deere Green, featuring a durable steel frame and composite hood, complemented by a heavy-duty cast-iron front axle for robust performance. The exterior includes LED work lights and was professionally cleaned in 2024, showcasing its pristine, like-new appearance.
The 9.5-24 front and 16.9-28 rear tires provide excellent traction for field and loader work. The hydraulic wet disc brakes ensure reliable stopping power, and the tractor features a locking rear differential for enhanced traction. The 12F/12R PowerReverser transmission offers 12 forward and 12 reverse speeds with a hydraulic shuttle and left-hand reverser, ideal for tasks requiring frequent direction changes, with a top speed of approximately 25 mph (40 km/h).
The enclosed cab features a deluxe suspension seat, cold air conditioning, heat, and an ergonomic control layout with a digital display for RPM, fuel level, and engine temperature. Appointments include a joystick for loader control with third-function hydraulic remotes (ideal for grapples or other attachments), a cup holder, a toolbox, and dual cab doors for easy access. The single rear SCV and telescopic 3-point hitch arms support versatile implement operation, with the 520M loader providing precise material handling.
The instrumentation includes a clear digital display, and the hour meter shows 25.8 hours.
The John Deere 3029H 2.9L (179 cu. in.) 4-cylinder turbocharged diesel engine meets EPA Tier 4 Final emission standards with a diesel oxidation catalyst (DOC) and selective catalytic reduction (SCR), producing 75 horsepower at 2100 RPM. The hydraulic system provides a total flow of 22.5 gpm (15.9 gpm implement, 6.6 gpm steering) at 2900 psi, supporting the loader, rear remotes, and 3-point hitch with a lift capacity of 3219 lb at 24″ behind the lift point.
Technical Specifications:
Engine: John Deere 3029H, 2.9L (2930 cc), 4-cylinder, turbocharged diesel, 106.5 mm bore x 110.0 mm stroke
Horsepower: 75 HP (gross), 60 HP (PTO)
Fuel Tank Capacity: 25.0 gal (94.6 L)
Transmission: 12F/12R PowerReverser, hydraulic shuttle, 12 forward and 12 reverse speeds, left-hand reverser
PTO: Rear, independent, 540 RPM

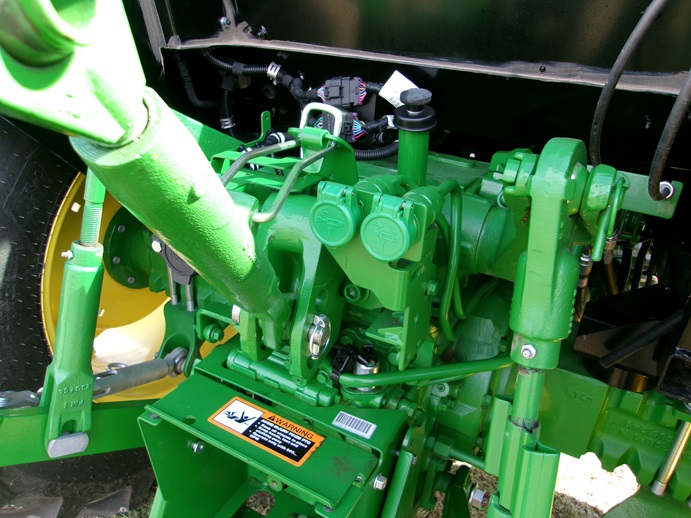

Hydraulic System: Open center, total flow 22.5 gpm (85.1 L/min), implement flow 15.9 gpm (60.2 L/min), steering flow 6.6 gpm (25.0 L/min), 2900 psi
Lift Capacity: 3219 lb (1460 kg) at 24″ behind lift point

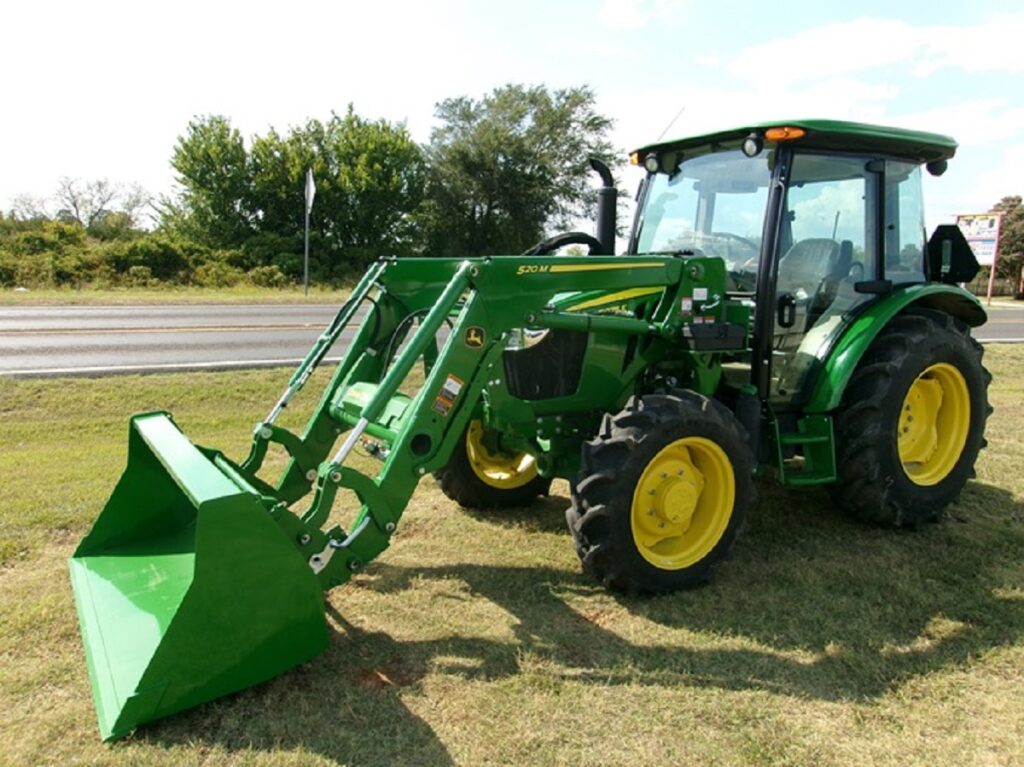

Loader (520M): Lift capacity at full height (at pin) 2998 lb (1360 kg), breakout force 4115 lb (1867 kg), lift height to pin 126 in (3200 mm), quick-attach bucket, third-function hydraulics
Dimensions: Overall length (with 3-point hitch) 141.7 in (3600 mm), width 69.7 in (1770 mm), height to top of cab 100.4 in (2550 mm), wheelbase 73.2 in (1860 mm), ground clearance 16.8 in (427 mm)
Weight (with cab and loader): Approx. 6500 lb (2948 kg)
Tires: Front 9.5-24, Rear 16.9-28
Additional Features: One rear SCV, third-function loader hydraulics, Category 2 3-point hitch with telescopic arms, power steering, wet disc brakes, deluxe cab with AC/heat, joystick loader control, foldable ROPS, LED lighting
This John Deere 5075E is in like-new condition with extremely low hours, featuring a comfortable enclosed cab, a versatile 520M loader with third-function hydraulics, and a single-owner history, making it a reliable and powerful utility tractor for farming, landscaping, or property maintenance tasks.
—————————-
Buy with Confidence: we are so confident in the condition of our equipment that we offer a 10-day inspection policy and a 6-month warranty!
– Clean Title!
– Excellent Condition!
– Backed by our 6-month warranty!
– 10-Day Inspection Policy!
We also offer nationwide shipping at a competitive rate of $0.80 per mile. Our shipping service is handled with the utmost care, ensuring that your equipment arrives safely and in the same excellent condition in which it leaves our lot.
Whether you’re local or across the country, we’re committed to delivering the best equipment-buying experience possible. Reach out today and let us help you find your next equipment!
Contact us today for more information!!
